LT05+
LT05+
Device Features
  • Support GPS/Beidou, AGPS, LBS,with accurate position performance
  • Built in high sensitive G-sensor accelerometer
  • Supports intelligent self-diagnosis, intelligent power save mode, remote fuel and power cut off, OTA and alarm functions
  • Small in size and wide voltage, especially designed for scooter, motorcycle, electric vehicles and automotive financial risk control project
  • Small and convenient for conceal installation

    Functions

  • High position accuracy
  • support GPS/Beidou and LBS
  • support blind zone compensation
  • static drift suppression
  • Multiple alarms detecting including vibration
  • cable cut off
  • speeding,low speed,low voltage etc
  • Intelligent control
  • supports remote power and fuel cut off
  • remote configuration and OTA
Hardware Technicla Specification
  • Working Voltage-DC 9V~100

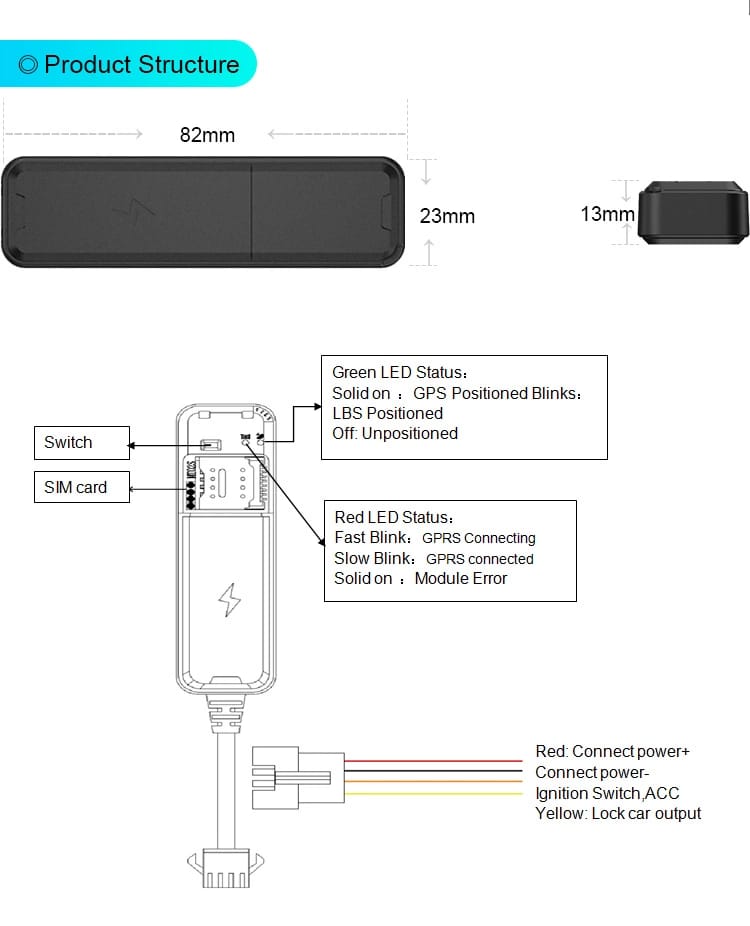

  • Dimension-82mm×22mm×12mm
  • Working Current-Average Current<30mA (DC12V),Maximum Current<100mA(DC12V)
  • Battery Production-Anti-200V power supply reverse connection; main voltage detection
  • Built in Battery-120mAH, 3.7V, Lithium polymer battery
  • Working Temperature= -20℃~70℃
  • Storage Temperature= -40℃~85℃
  • Relative humidity=5%~95%
  • GPRS Class 12,TCP/IP
  • GPS Channel 20
  • GPS Sensitivity-159dBm
  • Acquisition Sensitivity -144dBm
  • Position Accuracy-5~10m
  • TTFF (Open Sky)
  • Cold Start: <38s
  • Warm Start:<32s
  • Hot Start:<2s
  • StandbyAverageCurrent-~0.8mA(12V DC)~0.4mA(24V DC)
  • GSM/GPS Antenna Built-in design
  • Data Transmit TCP, SMS
LT05+ comes with all the features of LT05 in addition to capability of remotely stopping the vehicle with a simple SMS command or by pressing a button from the Libi Technologies mobile app.
