Libi Technologies : GPS Vehicle Tracking System in India
LIBI140 Arai Approved

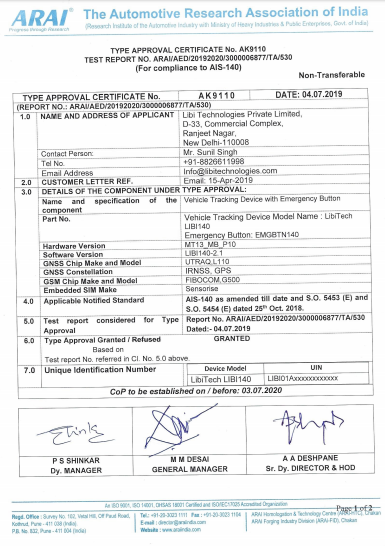

Arai Approved Certificate

LIBI140 Arai Approved

Arai Approved Certificate Details

  • Model No: LIBI140
  • Certificate No: AK9110
  • Test Report No: ARAI/AED/20192020/3000006877/TA/530
Device Features
  • GPS+IRNSS+LBS+AGPS
  • Real time tracking
  • AIS 140 Compliant
  • SOS emergency Call
  • Waterproof & Dustproof - IP65
  • ACC detection
  • Supports 3 IPs
  • Up to 60000 tracking Logs records.
  • Remote power control
  • Remote Listening
  • FOTA Upgrade Through GPRS & SMS
  • RS232 & RS485 Interface
  • Plug & play UART interface.
  • GPRMC out through UART.
Hardware Technical Specification
  • Mechanical Size 98mm (L) x 56mm (W) x 18mm (H)
  • Weight 80±5g
  • Interface RS232 and RS485 interface
  • Data transmission Packet data GPRS and SMS
  • Positioning method GPS
  • Storage 8MB FLASH, up to 60000 GPS data storage
  • Power Working Voltage 9-36VDC
  • Working Current Max.: <200mA@13.8/27.6VDC
  • Average: <100mA@12V DC
  • Sleep mode: <10mA@12/24VDC
  • GPS and IRNSS Receiver type:,Module:TRAQ L110
  • GNSS and IRNSS:GPS L1 1575.42MHz C/A Code
  • BeiDou2 B1 1561.098MHz C/A Code
  • Capture sensitivity: -145dBm
  • Tracking sensitivity: -162dBm
  • Accuracy: 5m CEP
  • Time to first fix:Cold start: <36.2 s @-130dBm (typ.),Warm Start<31.4s,Hot start: <1s@-130dBm (typ.)
  • Cellular Frequency
  • Module: FIBCOM G500
  • GSM/GPRS 850/900/1800/1900 MHz
  • Working voltage: 3.3 – 4.5 V (recommend 4.0V )
  • Transmitted power:2 W,850/900 MHz,1 W,1800/1900 MHz
  • Chipset STM32F070CB
  • Battery Built in 850mAH battery,3.6V,Lithium polymer battery, 8 hours working
  • Anti-200V power supply reverse connection; main voltage detection
  • 3-axis G-sensor For vehicle motion and static status detection
  • LED Indication GPS/Cellular/
  • Antenna Cellular Internal
  • GPS Internal
  • Accessories
  • Environment Working Temperature -20℃ ~ +70℃
  • Storage Temperature -40℃ ~ +85℃
  • Humidity 5%~95%(no fog)

What is AIS140

Automotive Industry Standard 140 (AIS 140) is a set of standards published by Automotive Research Association of India (ARAI) designed to build an Intelligent Transportation System (ITS) specifically tailored to gain total control over public transportation system in India.

To comply with the AIS 140 guidelines every commercial vehicle (with yellow number plate) will need to have a real-time Navic/GPS tracking system with emergency request buttons (panic/SOS buzzer).

This mandate is in line with the notification from Ministry of Road Transport and Highways (MORTH) dated 28th November 2016.

The ITS initiative would force following sectors/industries to adopt the standard immediately.

  • All Yellow Number Plate Vehicles
  • State Road Transport Corporations
  • Domestic and Interstate Private Bus Operators
  • Ambulances and Emergency Response Vehicles
  • All Educational Institutions
  • Cars, Bus and Taxi Fleet Owners
  • Rent-a-Car Services
  • Taxi Ride Hailing Services
